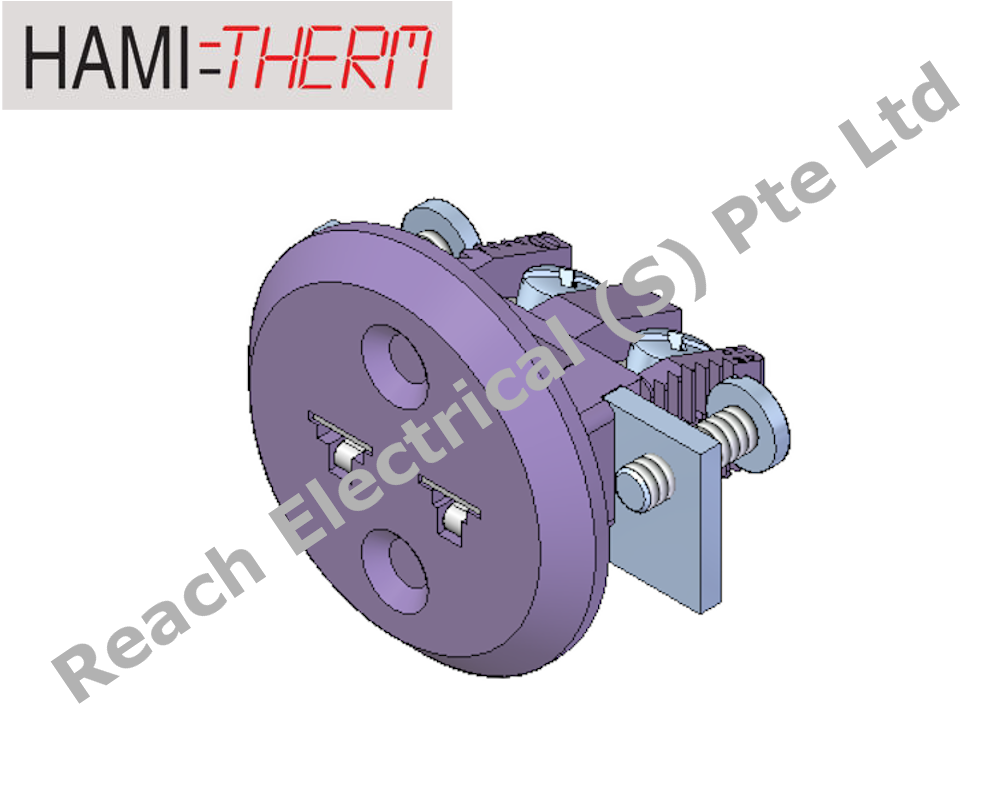

Hamitherm – PMIRB-Panel Miniature Insert Round Bracket Mount (200ºC)

Description

Application
Panel insert for thermocouple and RTD circuits.
Mounting by means of a stainless steel bracket with two screws behind the panel. Ideal panel insert for instrument cases.

Construction
– Glass filled thermoplastic body with original thermocouple material pins and spring loaded inserts.
– Polarized pins ensure proper connection.
– Easy wire connection through sandwich construction.
– Molded barriers prevent short circuit.
– Rugged one body design.
– Polarity indication on body
– Stainless steel bracket and screws for rear panel mounting
